FEATURES

  • Complete: All ROX models are equipped with powerful drives, high-quality laser scanners, and pre-configured safety controller.

  • Variable: The self-supporting frame and compact core modules were designed for maximum flexibility and easy modification. This allows each robot to be precisely customised to your needs. All specified dimensions of the robot are minimum dimensions, the robot can be enlarged in length, width and height and customised to your requirements at any time.

  • Compatible:  The entire series maintains identical optics and operating concepts, enabling easy training and programming. Uniform interfaces provide access to a common environment map and fleet-wide cooperation with work and charging stations.

  • Future-proof: The ROX series is based on the latest components and offers state-of-the-art technology for years to come. Software-wise, both PlatformPilot and ROS 2 are available, which are constantly maintained and always up to date.



In addition, we offer many interesting options.

AVAILABLE KINEMATICS

ROX-Trike

Simple & quick
More information



ROX-Diff

Agile & cost-efficient
More information

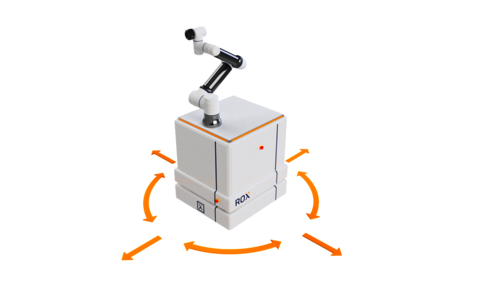

ROX-Argo-Duo

Most affordable omnidirectional
More information



ROX-Argo-Trio

Less expensive & still omnidirectional
More information



ROX-Argo

Strong & omnidirectional
More information























TECHNICAL DATA

Dimensions & Weights

Payloard
up to 500 kg

Min. Length x Width x Height
740 x 680 x 330

Speed
up to 2,0 m/s

Uptime
depends on selected battery

Components

Sensors
2 x Safety laser scanner, 360° field of view

Battery
AGM (48 V, 26-78 Ah, cost-efficient) or
LiFePO4 (48 V, 21-63 Ah, rapid charging capable)

Safety
Sick Flexi Soft EFI-pro
programmable and extendable

Options
Charging station, wireless emergency stop, IOBoard, ...



 ROX-TrikeROX-DiffROX-Argo-DuoROX-Argo-TrioROX-Argo
OmnidirectionalNoNoYesYesYes
Minimum Height330 mm
Minimum Width680 mm
Minimum Length740 mm
Payload300 kg300 kg300 kg400 kg500 kg
Speed1,5 m/s1,5 m/s2 m/s2 m/s2 m/s
Arm IntegrationYesYesYesYesYes

Configure your robot

ROX
Basic configuration
Description
Turnkey system: 2x motors, 2x Sick nanoScan3 laser scanner, Sick Flexi Soft, versiegelte Bleibatterie 48V/26Ah, wireless joystick, manual charger, on-board computer (Intel i5, 8 GB RAM, >200 GB SSD, WLAN), ROS, documentation, CE conformity declaration

1 day training
Description
In Heilbronn for up to 3 persons
inclusive catering

Basic Support
Description
3 months support (telephone/e-mail)

Automatic charging station

LiFePO4 Battery 48V/21Ah, instead of AGM

Additional AGM Battery tray 48V/26Ah

Additional LiFePO4 Battery tray 48V/21Ah

IOBoard

i7 on-board computer
Description
Intel Core i7, 16 GB RAM, 400+ GB SSD

Illuminated signal frame

Extended support
Description
Additional 6 months support
by telephone/e-mail/update
